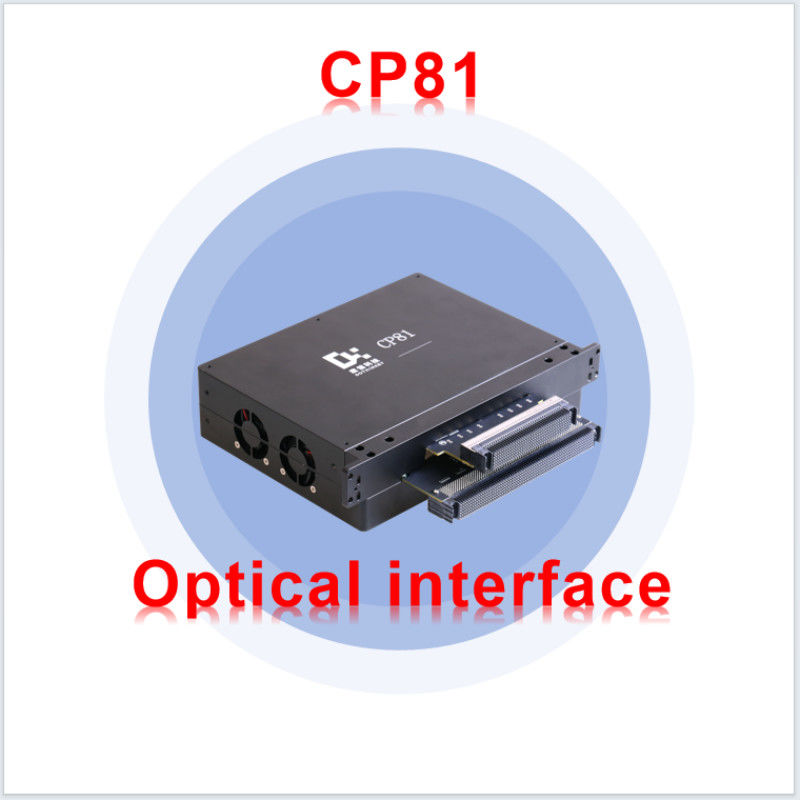

Name: Capture Card MIPI Camera Frame Grabber For Vehicle Solutions & Industrial Applications
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Capture Card >

Capture Card MIPI Camera Frame Grabber For Vehicle Solutions & Industrial Applications

Capture Card MIPI Frame Grabber

MIPI Camera Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Capture Card MIPI Camera Frame Grabber For Vehicle Solutions & Industrial Applications

Product Details

LP Voltage Measurement:

0 ~ 1.4V, Accuracy: ±10mV

Sensor Interface:

MIPI D-PHY CSI

External Interface ESD Protection:

Human Body Model >= ±2000W

DPS Output Voltage:

0.5V-5V

MIPI Data Channel:

SCR D-PHY

OS Characteristics:

Supports 8×39 OS Testing

Highlight:

Capture Card MIPI Frame Grabber

MIPI Camera Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

MIPI Capture Card CP81 for In-Vehicle Solutions & Industrial Applications

Featutes:

1. High-bandwidth image acquisition (8×D-PHY channels)
2. 8 independent 6-output programmable power modules
3. Autoranging current measurement from milliamps to nanoamps
4. Optical validation system supporting 312 test points
5. Analog parametric measurement interface
6. Power rail quality monitoring subsystem
7. LP state voltage measurement capability
8. 4-wire remote sensing for voltage compensation

Schematic:

Capture Card MIPI Camera Frame Grabber For Vehicle Solutions & Industrial Applications 0

Dimention:

Capture Card MIPI Camera Frame Grabber For Vehicle Solutions & Industrial Applications 1

CP81 LP Voltage Measurement:

Pin Name	Measurement Voltage Range	Accuracy	Number of Test Channels
MIPI Pins	0~1.4V	±10mV	8X10
