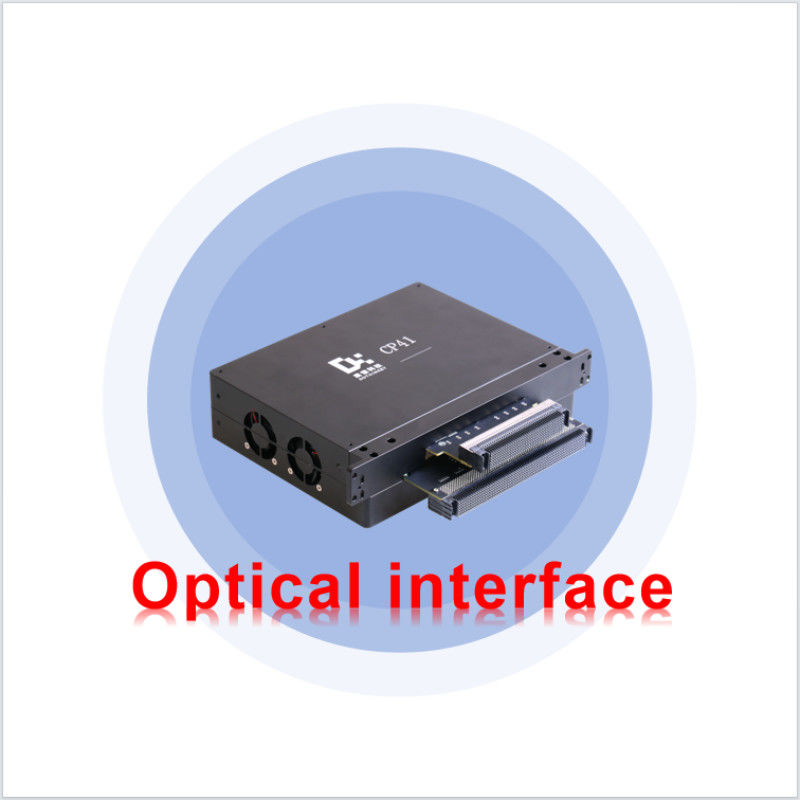

Name: 1M IC Rate MIPI Capture Card Dothinkey Industrial Imaging System Frame Grabber
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > MIPI Capture Card >

1M IC Rate MIPI Capture Card Dothinkey Industrial Imaging System Frame Grabber

1M IC MIPI Capture Card

MIPI Capture Card Dothinkey

Imaging System Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

1M IC Rate MIPI Capture Card Dothinkey Industrial Imaging System Frame Grabber

Product Details

LP Voltage Measurement:

Measurement Range: 0 ~ 1.4V, Accuracy: ±10mV

DPS Characteristics:

Provides 4X4 Independent Power Supplies

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane

Height Width Length:

59mm * 180.2mm * 250mm

Sensor Interface:

MIPI D-PHY CSI

OS Characteristics:

Support 4X36 Channels OS Test

I²C Rate:

100K-1M

Power Supply:

DC12V/8A

Highlight:

1M IC MIPI Capture Card

MIPI Capture Card Dothinkey

Imaging System Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

High-Speed 1M IC Rate MIPI Capture Card Dothinkey Brand for Industrial Imaging Systems

Featutes:

1. MIPI Alliance certified 4-channel imaging interface
2. 4×4 digital power system (DPS) with 0.1% load regulation
3. Lock-in amplifier based microcurrent detection
4. 4×36 OS test matrix with <10Ω resolution
5. Differential analog input with EMI filtering
6. Power rail FFT analysis (10Hz-1MHz bandwidth)
7. LP mode voltage margin testing (±5% tolerance)
8. Automatic line impedance compensation
9. Sensor power-on sequence validation

Schematic:

1M IC Rate MIPI Capture Card Dothinkey Industrial Imaging System Frame Grabber 0

Dimention:

1M IC Rate MIPI Capture Card Dothinkey Industrial Imaging System Frame Grabber 1

CP41 Analog measurement input pin applications:

Pin Name	Measured Voltage Range	Accuracy	Number of Test Channels
ADC1~ADC6	-2~5V	±10mV	4X6
