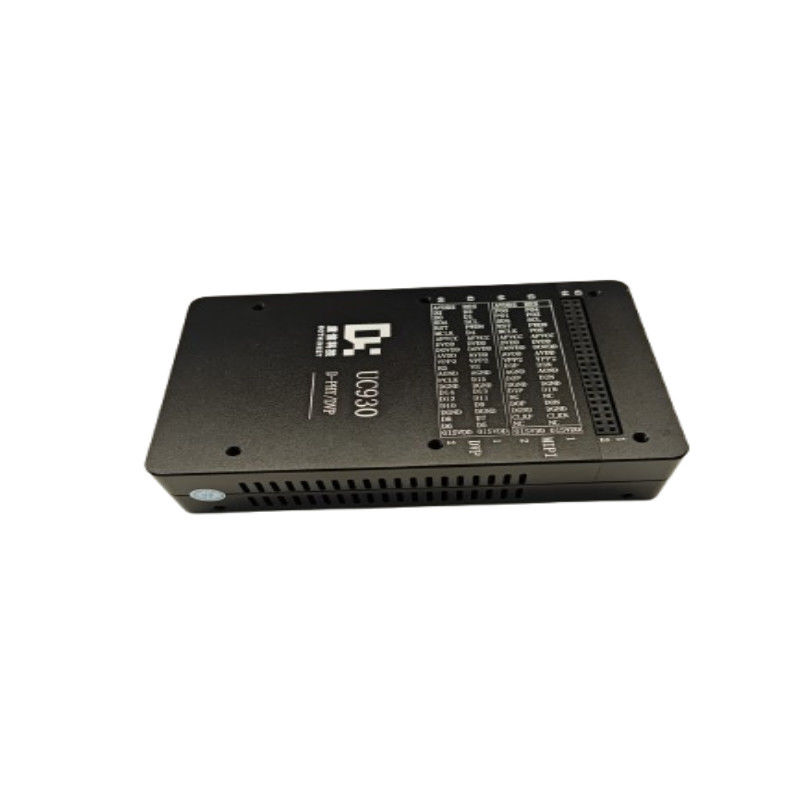

1.6Gbps MIPI USB Frame Grabber Single Camera Module Testing

MIPI Capture Card Frame Grabber Single Camera Module Testing

The UC930 product features seven independent high-precision, low-noise digital DC sensor power supplies. The DOVDD supports a maximum of a single-channel 3.3V/500mA power supply. The DVDD supports a maximum of a single-channel 2V/800mA power supply. AVDD, AFVCC, and AVDD2 each support a maximum of a single-channel power supply below 4V and 500mA. OISVDD supports a maximum of a single-channel power supply below 4V and 600mA.

Features

*High rate MlPl lane,and up to 4 lanes supported, bandwidth can be up to 1.6Gbps/lane.
*Parallel date transmission supported, and data up to 16 bits.
*HISPl format module test supported.

*7 programmable power and it also has a high accuracy, low noise; Two power provide the ToF module specially.
*Provide power supply for TOF module and current acquisition.
*Camera module compatibility is wide, supporting most of module in the market.
*Vehicle applications supported, in 24v power supply situation, VPP2 will have 18v output maximum from products.

Funtion

*Support MIPl/DVP/HISPl+ 7 channel power + OS + TOF (DVDD and AFVCC support)+AIN testing+Vehicle applications.

FAQ

Q: What is the lead time?

A: Standard products ship within 5-8 working days.

Q: Do you provide technical support?

A: Yes, we offer professional technical support, including remote guidance and after-sales service.

Q: What is the minimum order quantity (MOQ)?

A: Our standard MOQ is 1 pcs.

Q: What is the warranty period?

A: 1-year warranty.

Q: Is secondary development supported? Are examples provided?
A: Yes, it is supported, and example files are provided.
