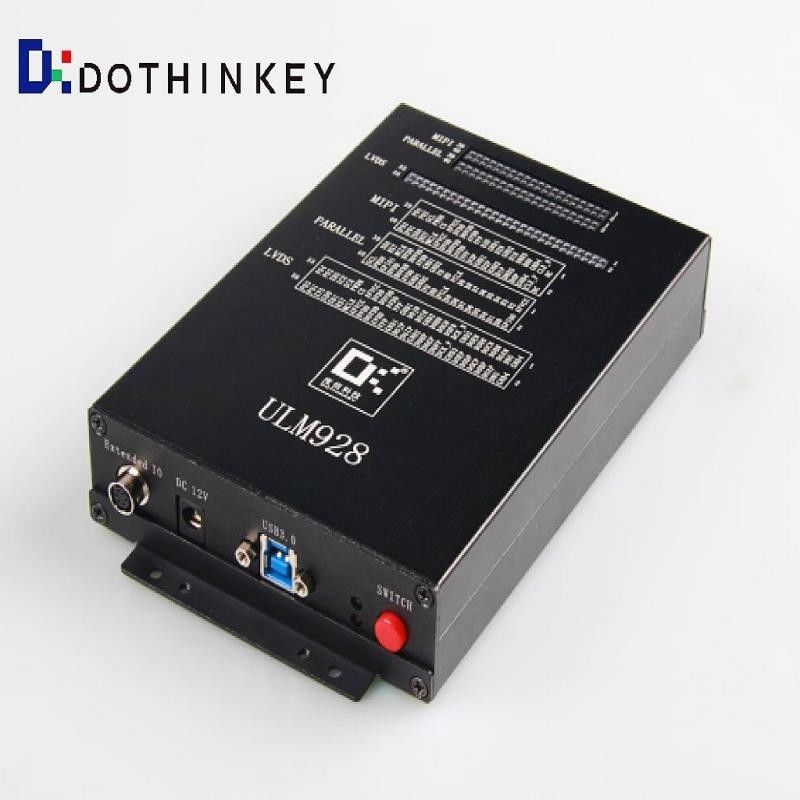

Multifunctional USB 3.0 Frame Grabber Dothinkey ULM928 Black

Dothinkey Multifunctionality USB3.0 Interface Image Grabber ULM928

1.ULM928 Description:

1)ULM928 is a multi-functional test kit.

2)USB3.0 Interface and application in Mobile phone/automotive/monitoring camera, MIPl/DVP/HISPI/ LVDS.

3)High speed image grabber,support DVP format module testing, maximum supported PCLK frequency:
200M Hz.

4)ULM928 supports modules in multiple interface formats, including MIPI, HISPI, DVP, SPI, and SUB-LVDS.To ensure precise quality testing of camera modules, the ULM928 integrates precision instrument-grade current detection technology, achieving a minimum resolution of 10nA. This enables more accurate standby current measurement for image sensors, significantly improving testing efficiency and reliability.

2.Features:

1)5-channel high-precision, low-noise programmable sensor power supply.

2)Supports AFVCC/AVDD/DOVDD/DOVD (3.3V/500mA max per channel).

3)VPP power supply: 2.5-5V/500mA or 5-9V/200mA.

4)45-channel high-precision Open/Short detection.

5)Supports high-current testing up to 15mA.

6)Configurable test voltage/current for more accurate results.

7)Adaptive threshold setting for reliable fault detection.

3.Advantage:

1)High-speed LVDS interface: Supports up to 10 lanes @ 600Mbps per lane.

2)MIPI interface: 4 lanes @ 1Gbps per lane.

3)DVP interface: Supports up to 200MHz PCLK.

4)HISPI/SPI interface support.

5)USB 3.0: 5Gbps data transfer.

6)Precision current measurement: Dynamic/Standby current detection.

7)Advanced Open/Short testing: Suitable for chip packaging.

8)5-channel programmable power supply: High-precision, low-noise.

9)Wide compatibility: Supports MIPI, HISPI, DVP, SPI and SUB-LVDS modules.
