Name: Dothinkey USB3.1 MIPI Frame Grabber DC12V/1A Power Supply
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: UQ200
Price: 3,100.00 USD
Availability: InStock

Home > products > USB MIPI >

Dothinkey USB3.1 MIPI Frame Grabber DC12V/1A Power Supply

Dothinkey USB3.1

USB3.1 MIPI Frame Grabber

DC12V 1A MIPI Frame Grabber

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

UQ200

Request A Quote

Dothinkey USB3.1 MIPI Frame Grabber DC12V/1A Power Supply

Product Details

Sensor Interface:

MIPI D-PHY CSI * 1 MIPI C-PHY CSI * 1

Model:

UQ200

Name:

Image Grabber

Size:

90*85*33mm

Color:

Black

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane MIPI C-PHY 1/2/3 Trio

Highlight:

Dothinkey USB3.1

USB3.1 MIPI Frame Grabber

DC12V 1A MIPI Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availability

Related Products

86-755-6114-6178

Contact Now

Product Description

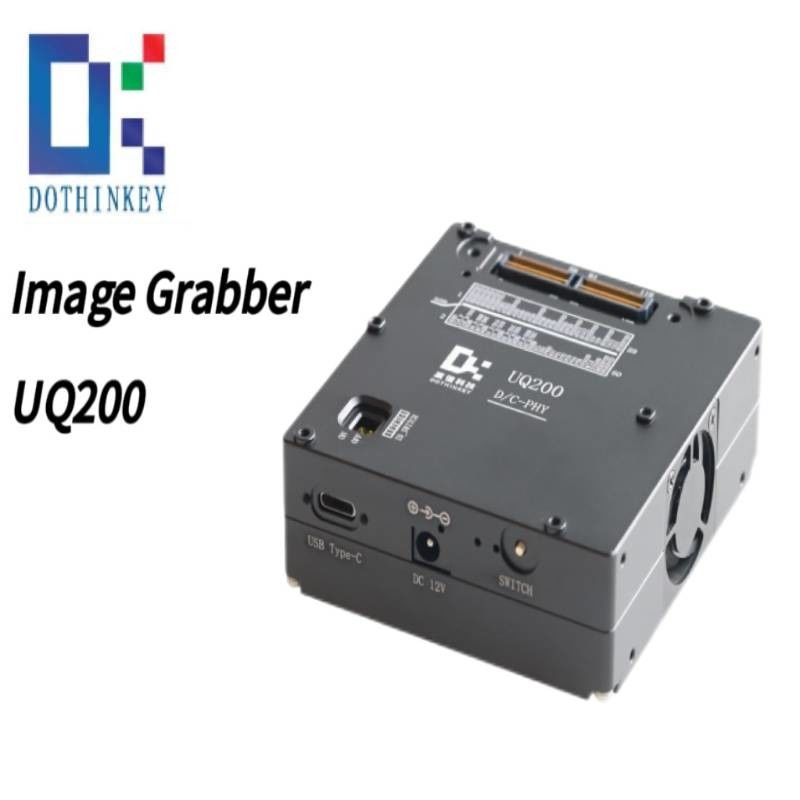

Dothinkey MIPI USB3.1 Series Image Grabber Power supply DC12V/1A

1.DPS Power Supply Characteristics

The system features a 7-channel programmable power supply with the following specifications

1)AVDD/AFVCC: Adjustable output from 0 to 5V, supporting up to 1A current

2)AVDD2/DVDD/VPP2: Adjustable output from 0 to 3.3V, supporting up to 1A current

3)DOVDD: Adjustable output from 0 to 3.3V, supporting up to 0.5A current

4)VAUX: Adjustable output from 0 to 8V, supporting up to 1A current

All channels provide high-precision voltage regulation for flexible system configuration.

2.General technical indicators

General technical indicators
Power supply	DC12V/1A
External interface ESD protection	Human Body Model (HBM) ≥ ±2000V Machine Model (MM) ≥ ±200V
Size	908533mm
Sesor compatibility feature
Sensor interface	MIPI D-PHY CSI * 1 MIPI C-PHY CSI * 1
MIPI rate ①	MIPI D-PHY ≥ 2.5Gbps/Lane MIPI C-PHY ≥ 3.5GSps/Trio
MIPI data channel	MIPI D-PHY 1/2/4 Lane MIPI C-PHY 1/2/3 Trio
PC interface+Buffer
PC communication interface	USB3.1 GEN2
Buffer capacity	DDR4 4GB
Sensor communication index
I²C rate	100K~1M
The maximum communication rate of SPI	20Mbps
Sensor clock	6 ~ 99MHz ±0.1MHz
Sensor IO level (follow DOVDD)	1.2V ~ 3.3V
OS characteristics	Support 29-way OS testing
PS:①This is the maximum MIPI rate when the module transfer board is directly connected to the test box without an extension cable. If an extension cable is passed through, the maximum MIPI rate is affected by the extension cable and the module.The combined influence of the adapter board and the fixture.
