Name: 0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > USB MIPI >

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

5V USB MIPI Capture Card

0.8V USB MIPI Capture Card

8×39 OS USB MIPI

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Product Details

Sensor Supply Voltage:

Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

Height Width Length:

59mm * 262mm * 230mm

MIPI Maximum Rate:

CH1/CH2/CH3/CH4/CH5/CH6/CH7/CH8

DPS Characteristics:

AVID, AVID2, DOVID, VPP2 Maximum Drive Capability 0.5A

LC Characterization:

Supports 8×19 LC Testing

DPS Output Voltage:

0.5V-5V

Highlight:

5V USB MIPI Capture Card

0.8V USB MIPI Capture Card

8×39 OS USB MIPI

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

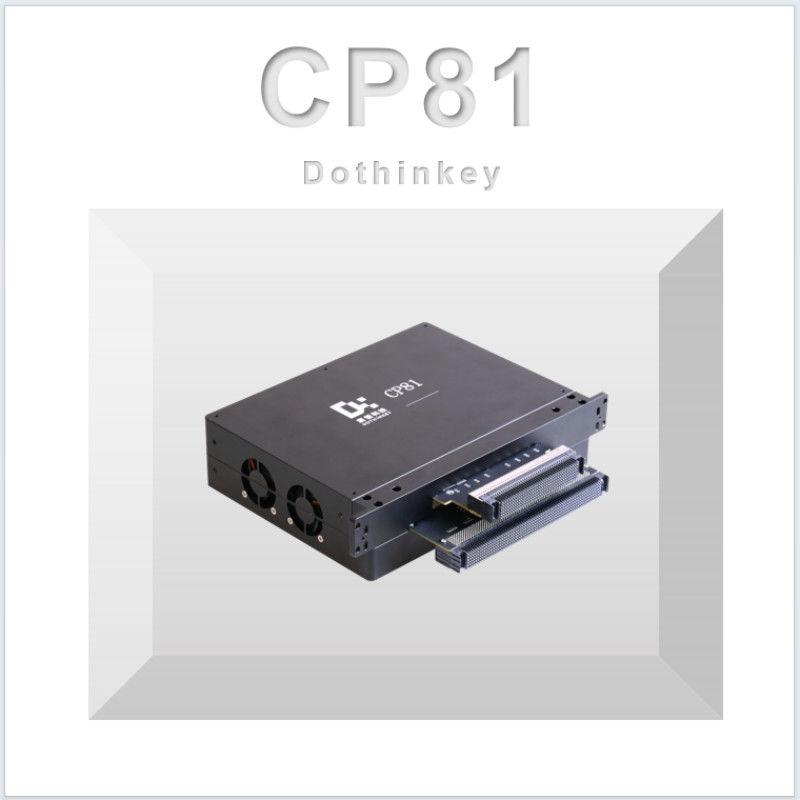

CP81 USB MIPI Capture Card with 8×39 OS and 8×19 LC Testing Support

Featutes:

1. Multichannel MIPI D-PHY interface supporting 8 concurrent image data streams
2. Programmable 8×6 power rail system with per-channel voltage adjustment
3. Precision current monitoring spanning mA to nA ranges
4. Optical sensor functional testing through 8×39 test matrix
5. Analog signal acquisition interface for parametric measurements
6. Real-time sensor power rail voltage monitoring
7. Low-power mode voltage characterization capability
8. 4-wire Kelvin sensing for power supply compensation

Schematic:

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support 0

Dimention:

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support 1

CP81 DPS Current Detection Accuracy:

Channel	Unit	Detection Range	Resolution	Accuracy(25℃)
AVDD AVDD2 DVDD DOVDD	mA	0.5mA~maximum output current	0.1mA	±0.7%+5LSB
	uA	10uA~20mA	0.1uA	±0.7%+5LSB
	nA	100nA~200uA	10nA	±0.7%+5LSB
