Name: USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > USB MIPI >

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

USB Frame Grabber MIPI

8×39 OS MIPI Capture Card

Dothinkey MIPI Capture Card

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Product Details

External Interface ESD Protection:

Human Body Model >= ±2000W

Sensor Interface:

MIPI D-PHY CSI

MIPI Data Channel:

SCR D-PHY

DPS Characteristics:

8X4 0.5-5V Adjustable

PC Communication Interface:

10G Fiber Optic Interface * 4

Sensor Measurement Voltage Range:

0.5~5V

Highlight:

USB Frame Grabber MIPI

8×39 OS MIPI Capture Card

Dothinkey MIPI Capture Card

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

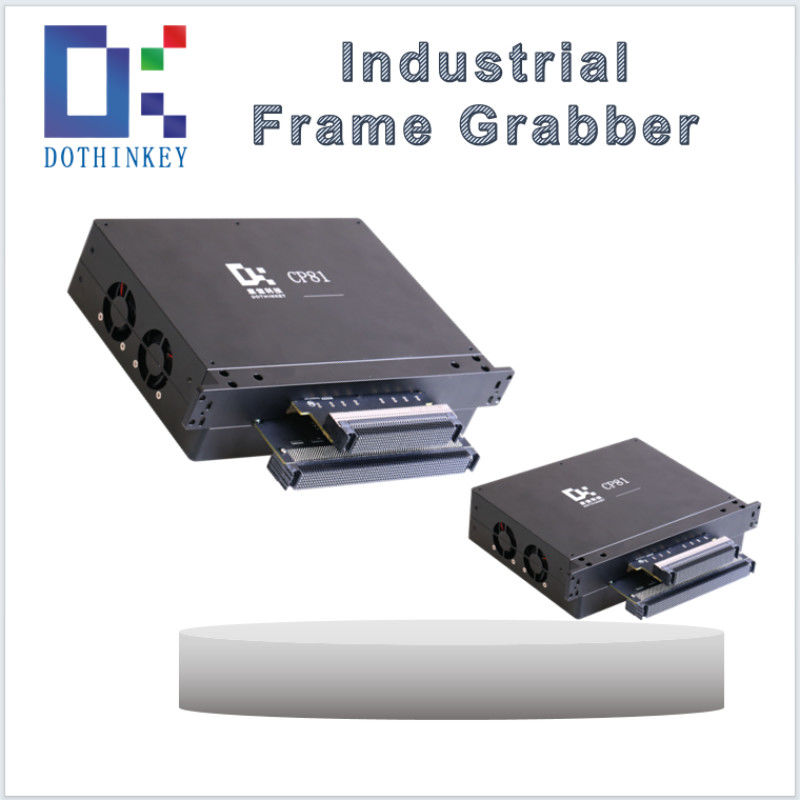

CP81 USB MIPI Capture Card with 8×39 OS and 8×19 LC Testing Support

Featutes:

1. High-speed image capture via 8-lane MIPI D-PHY interface
2. Configurable 48-channel power delivery system (8 groups × 6 channels)
3. Multi-range current measurement (10^-3 to 10^-9 A resolution)
4. 312-point optical sensor test solution (8×39 configuration)
5. Universal analog input for signal measurement
6. Power integrity analysis through rail voltage sensing
7. LP mode voltage monitoring for interface validation
8. Contact resistance compensation via Kelvin measurement

Schematic:

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support 0

Dimention:

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support 1

CP81 DPS Maximum Load Capacity:

Channel	DPS Output Voltage	Maximum Output Current	Note
AVDD	0.5V-5V	0.5A	The sum of the current values in a single module channel, excluding VAUX, must not exceed 1A. Notes: 1. A single module channel has 6 channels of DPS power supply for user configuration. 2. Eight module channels have a total of 8X6 DPS power supply for user configuration. 3. Please do not exceed the technical specifications provided in this table when DPS is in use, otherwise it will damage the product or affect the testing accuracy.
AVDD2	0.5V-5V	0.5A
DVDD	0.5V-3.3V	0.8A
DOVDD	0.5V-5V	0.5A
VPP2	0.5V-5V	0.5A
VAUX	1.3V-8V	0.1A
