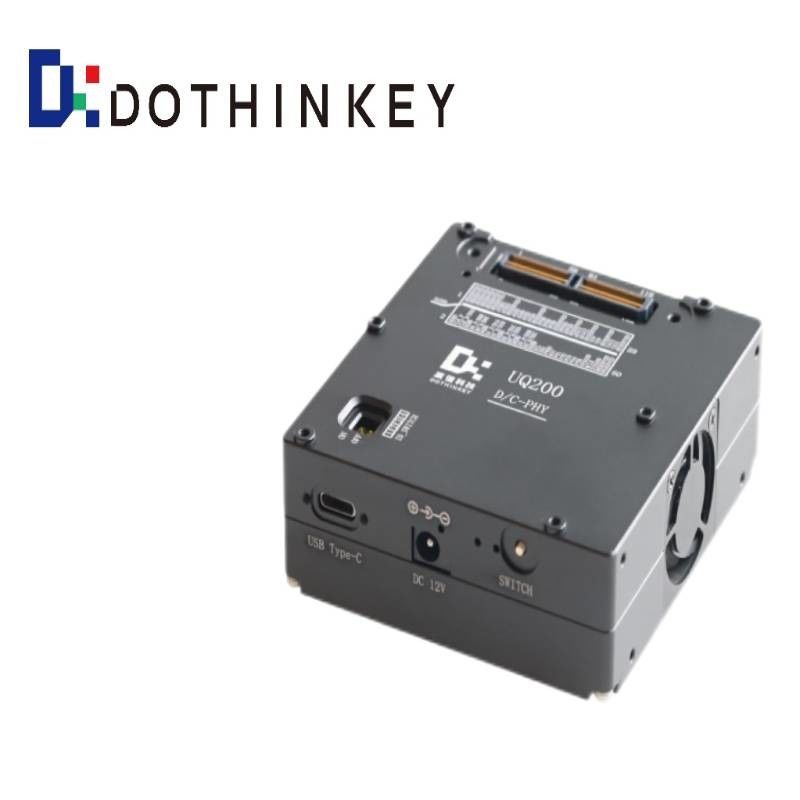

Dothinkey UQ200 USB3.1 Camera Frame Grabber MIPI D/C-PHY Image Grabber

Dothinkey UQ200

USB3.1 Camera Frame Grabber

MIPI D/C-PHY Image Grabber

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

UQ200

Request A Quote

Product Details

Size:

90*85*33mm

Model:

UQ200

Name:

Image Grabber

Color:

Black

Brand:

Dothinkey

OS Characteristics:

Support 29-way OS Testing

Highlight:

Dothinkey UQ200

USB3.1 Camera Frame Grabber

MIPI D/C-PHY Image Grabber

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock Availability

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey UQ200 High Speed MIPI D/C-PHY Image Grabber USB3.1 Series

1.General technical indicators

Power supply	DC12V/1A
External interface ESD protection	Human Body Model (HBM) ≥ ±2000V Machine Model (MM) ≥ ±200V
Size	908533mm
Sesor compatibility feature
Sensor interface	MIPI D-PHY CSI * 1 MIPI C-PHY CSI * 1
MIPI rate ①	MIPI D-PHY ≥ 2.5Gbps/Lane MIPI C-PHY ≥ 3.5GSps/Trio
MIPI data channel	MIPI D-PHY 1/2/4 Lane MIPI C-PHY 1/2/3 Trio
PC interface+Buffer
PC communication interface	USB3.1 GEN2
Buffer capacity	DDR4 4GB
Sensor communication index
I²C rate	100K~1M
The maximum communication rate of SPI	20Mbps
Sensor clock	6 ~ 99MHz ±0.1MHz
Sensor IO level (follow DOVDD)	1.2V ~ 3.3V
OS characteristics	Support 29-way OS testing
PS:①This is the maximum MIPI rate when the module transfer board is directly connected to the test box without an extension cable. If an extension cable is passed through, the maximum MIPI rate is affected by the extension cable and the module.The combined influence of the adapter board and the fixture.

2.Application

Mobile phone camera, high-speed MIPIC-PHY.

3.Programmable Power Supply (DPS) Specifications

The device integrates a high-precision 7-channel programmable power supply system with the following key features

1)Multi-Range Voltage Outputs

AVDD/AFVCC: 0-5V adjustable @ 1A max

AVDD2/DVDD/VPP2: 0-3.3V adjustable @ 1A max

DOVDD: 0-3.3V adjustable @ 500mA max

VAUX: 0-8V adjustable @ 1A max

2)Performance Characteristics

High-precision voltage regulation (±1%)

Low ripple noise design

Programmable soft-start functionality

Over-current/over-voltage protection

3)System Integration

Independent channel control

Remote sensing capability

Synchronization support for multi-channel operation

Note: All current ratings specified at 25°C ambient temperature. Derating may apply at elevated temperatures.
