Name: AA Test Imaging Source Frame Grabber 5Gbps Frame Grabber Device
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: FM101
Price: 3,100.00 USD
Availability: InStock

Home > products > Automotive Frame Grabber >

AA Test Imaging Source Frame Grabber 5Gbps Frame Grabber Device

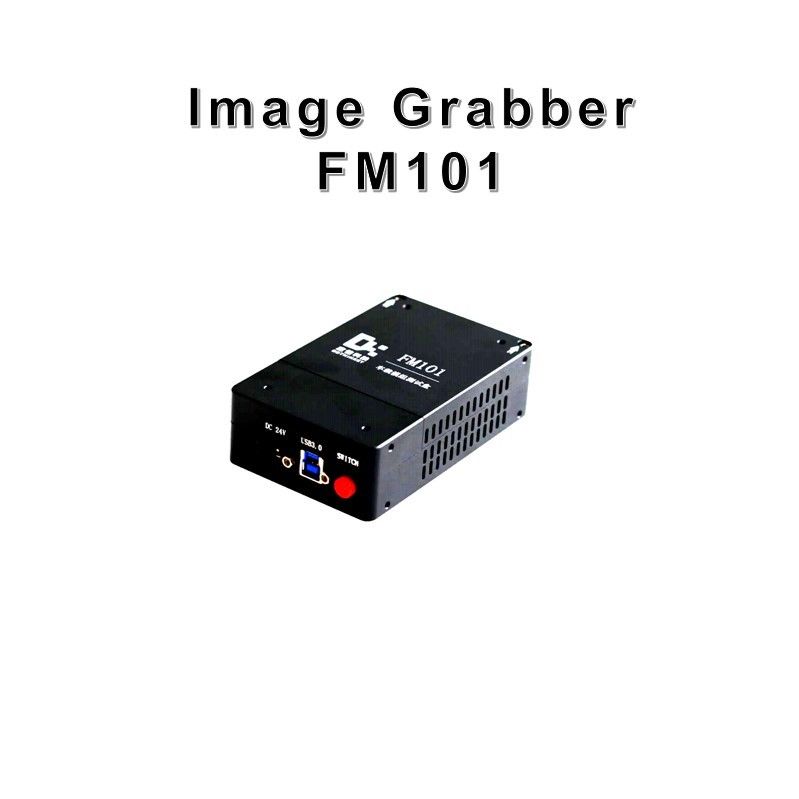

AA Test Imaging Source Frame Grabber

Imaging Source Frame Grabber 5Gbps

5Gbps Frame Grabber Device

Place of Origin:

Shenzhen China

Brand Name:

Dothinkey

Certification:

Model Number:

FM101

Request A Quote

AA Test Imaging Source Frame Grabber 5Gbps Frame Grabber Device

Product Details

Color:

Black

Image Trans-mission Rate:

5Gbps

Input Voltage:

110V/AC ~ 220V/AC 50Hz/60Hz

Output Power:

DC 24V/2.5A

Power Supply:

DC 24V/2.5A

Application:

Automotive Mounted Internal Parameter Calibration/AA Test

Highlight:

AA Test Imaging Source Frame Grabber

Imaging Source Frame Grabber 5Gbps

5Gbps Frame Grabber Device

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD1200-USD5000

Packaging Details

Carton packaging

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

Stock availability

Related Products

86-755-6114-6178

Contact Now

Product Description

5Gbps Automotive Imaging: Internal Calibration and AA Test Solution

FM101 Automotive Module Test System Features

Single-Camera Testing Solution
- Supports both FAKRA coaxial (single-ended) and STP differential interfaces
- Designed specifically for automotive camera module validation
Comprehensive Monitoring & Diagnostics
- Real-time current consumption monitoring
- Frame rate measurement and analysis
- Detailed error reporting:
  • Frame errors
  • Link errors
  • Decoding errors
Advanced Image & Power Management
- Full-image capture and storage capability
- Integrated Power-over-Coax (POC) support:
  • Power supply delivery
  • Voltage measurement
- Dedicated LED power supply for vehicle lighting modules
Flexible Configuration Options
- Selectable decoupling solutions
- Compatible with major automotive standards:
  • MAXIM serialization
  • TI serialization
- Supports most market-available serialized modules

Programmable power supply range and accuracy

Programmable power supply range and accuracy
Channel	Output voltage range	Step forward	No-load output voltage accuracy	Maximum output current	Current acquisition resolution	Current acquisition accuracy	POC voltage acquisition accuracy
CH1 CH2	0.8V-18V	0.1V	0.8V-6V :±60mV 6V-18V :±1%	1A	0.1mA	0-0.05A :±1.5mA 0.05A-1A :±1%	0.8V-6V :±60mV 6V-18V :±1%

Interface Function Description

1	Power output interface	No external power supply equipment is allowed! It is used to supply power to the supplementary lighting of the external module, independent of the POC power supply, and connected.The PIN spacing of the wire terminal is 3.81mm
2	Camera module interface A	Default standard configuration: Coaxial interface (COAX), FAKRA connector, Z-shaped foolproof interface, aqua blue
3	Camera module interface B	Differential Interface (STP), the finished product is only reserved. Recommended model: D4S20G-400A5-Z, water blue (Z) Type foolproof interface
4	Indicator light	Red: Power indicator light Green: Signal indicator light
5	Test box power supply interface	A dedicated DC 24V/2.5A power supply interface for the test box, which is used to provide working power for the test box
6	USB3.0 interface	USB3.0 communication interface
7	Switch	Test box power on/off switch
