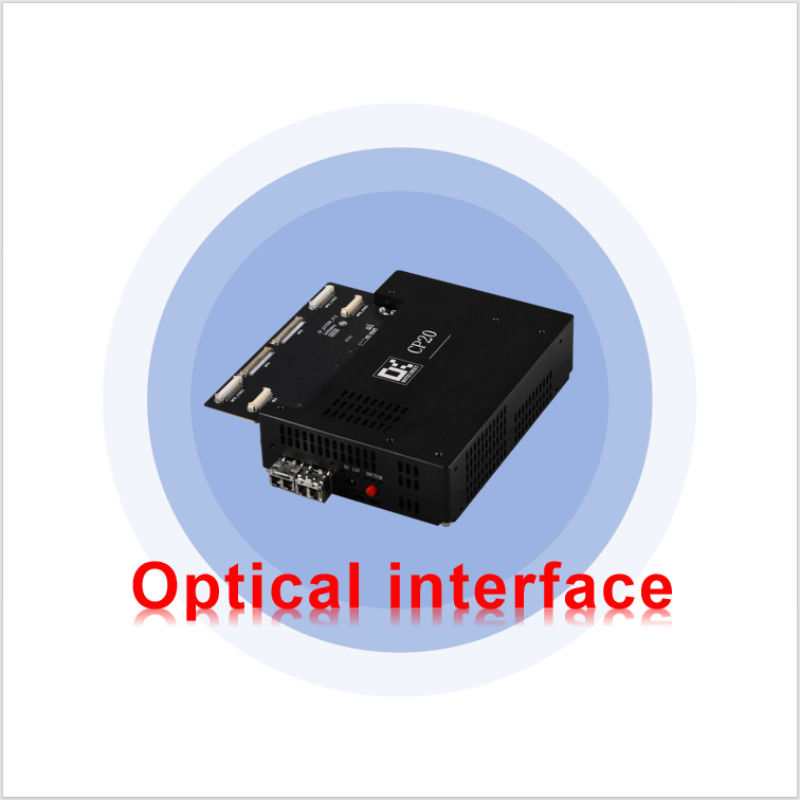

Name: Dothinkey Industrial Frame Grabber OS 8X39 Roads Support MIPI D PHY
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP20
Price: 3,100.00 USD
Availability: InStock

Home > products > Camera Frame Grabber >

Dothinkey Industrial Frame Grabber OS 8X39 Roads Support MIPI D PHY

Dothinkey Industrial Frame Grabber

MIPI Industrial Frame Grabber

MIPI D PHY Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP20

Request A Quote

Dothinkey Industrial Frame Grabber OS 8X39 Roads Support MIPI D PHY

Product Details

DPS Characteristics:

Supports 10-way Adjustable Power Supply

Output Voltage:

24V/DC

SensorInterface:

MIPID-PHYCSI

Analog Measurement Inputs:

ADC1~ADC6

Buffer Capacity:

DDR4_16Gbit

VAUX:

Measuring Range:1.3~8.0V, Accuracy: +_50mV

PowerSupply:

DC12V/8A

SPI Maximum Communication Frequency:

20MHz

Highlight:

Dothinkey Industrial Frame Grabber

MIPI Industrial Frame Grabber

MIPI D PHY Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

CP20 Industrial Camera Frame Grabber OS 8X39 Roads Support MIPI D PHY

Featutes:

1. Dual MIPI D/C-PHY Imaging:High-speed dual-channel data capture via MIPI D/C-PHY interfaces.
2. 2×5 Adjustable Sensor Power:10 programmable voltage rails (e.g., 2.2V) for sensor customization.
3. Current Detection (mA/µA/nA):Precision measurement across milliampere to nanoampere ranges.
4. 66-Channel OS Testing:Open/short circuit detection on 66 signal lines.
5. Configurable Product ID:Custom device identification for system integration.
6. Analog Signal Input:External voltage/current measurement capability.
7. Sensor Voltage Monitoring:Real-time supply rail voltage tracking.
8. Remote Kelvin Sensing:Line resistance compensation for accurate power delivery.

Schematic:

Dothinkey Industrial Frame Grabber OS 8X39 Roads Support MIPI D PHY 0

Dimention:

Dothinkey Industrial Frame Grabber OS 8X39 Roads Support MIPI D PHY 1

Analog Measurement Input Pins:

Pin Name	Measurement Voltage Range	Accuracy	Number of Test Channels
ADC1~ADC6	-2~4V	±10mV	2X6
