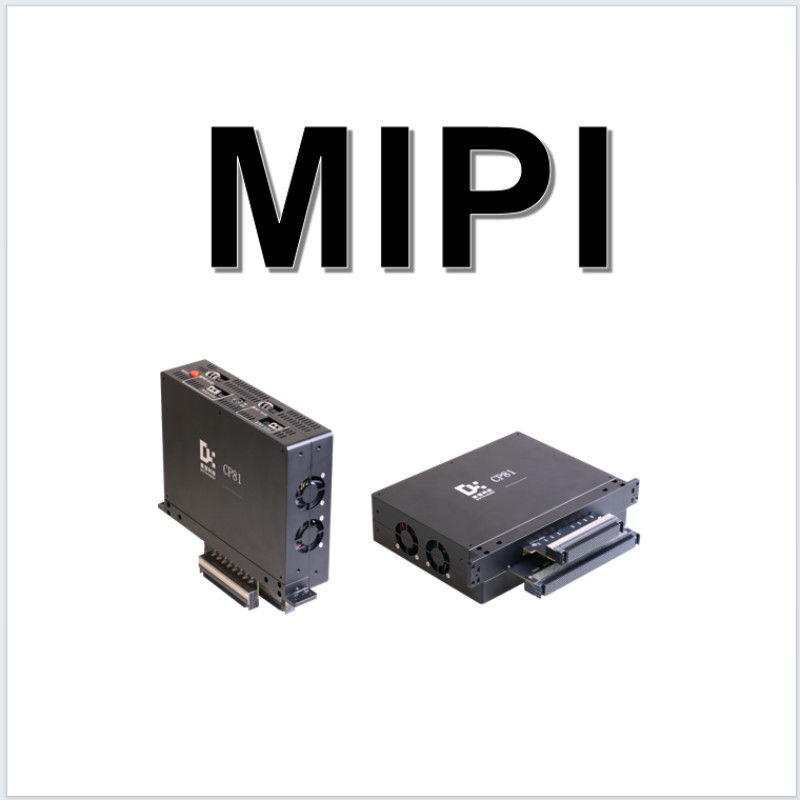

Name: Fiber Optic Camera Frame Grabber Dothinkey With DPS 48 Channel Power Supply
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP81
Price: 3,100.00 USD
Availability: InStock

Home > products > Camera Frame Grabber >

Fiber Optic Camera Frame Grabber Dothinkey With DPS 48 Channel Power Supply

Fiber Optic Camera Frame Grabber

Camera Frame Grabber Dothinkey

Frame Grabber Dothinkey 48 Channel

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP81

Request A Quote

Fiber Optic Camera Frame Grabber Dothinkey With DPS 48 Channel Power Supply

Product Details

Sensor Supply Voltage:

Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

Kelvin Compensation:

AVID, VPP2, DOVID, DVDD Support Kelvin Compensation

PC Communication Interface:

10G Fiber Optic Interface * 4

MIPI Maximum Rate:

CH1/CH2/CH3/CH4/CH5/CH6/CH7/CH8

LC Characterization:

Supports 8×19 LC Testing

DPS Characteristics:

8-way AUX Support 1.3-8V Adjustable, Maximum Drive Capability 0.1A

Highlight:

Fiber Optic Camera Frame Grabber

Camera Frame Grabber Dothinkey

Frame Grabber Dothinkey 48 Channel

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey Fiber Optic Frame Grabber with DPS 48-Channel Power Supply

Featutes:

1. Multi-stream imaging interface with D-PHY 1.2 compliance
2. 48-channel smart power system with digital control
3. Current measurement system with 9-order magnitude coverage
4. Structured optical testing through 8×39 array configuration
5. Versatile analog measurement input stage
6. Closed-loop voltage monitoring for sensor supplies
7. Low-power interface voltage characterization
8. Contact error elimination via Kelvin sensing

Schematic:

Fiber Optic Camera Frame Grabber Dothinkey With DPS 48 Channel Power Supply 0

Dimention:

Fiber Optic Camera Frame Grabber Dothinkey With DPS 48 Channel Power Supply 1

CP81 LC Leakage Current Measurement:

Test Voltage Range	Number of Test Channels	Test Voltage Accuracy	Test Current Range	Test Current Resolution	Test Range	Resolution
0.5V-3V	8X20	±20mV	mA	50uA-10mA	10uA	±1%+2 LSB
			uA	100nA-200uA	50nA	±1%+2 LSB
			nA	1nA-2uA	1nA	±1%+5 LSB
