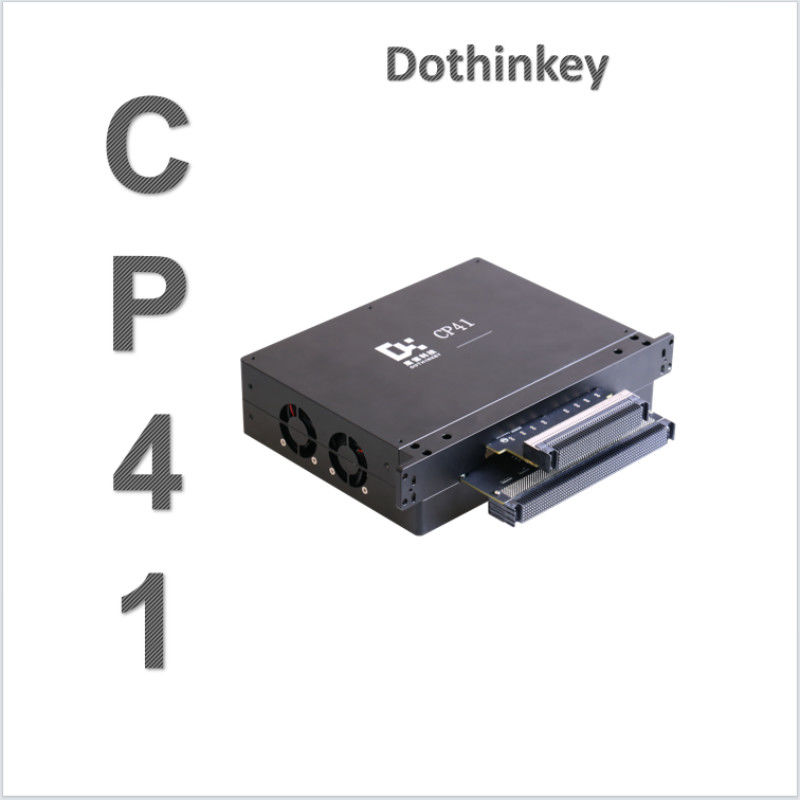

Name: AWDD DOWDD Frame Grabber Camera Grabber With MIPI C PHY Support
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > Camera Frame Grabber >

AWDD DOWDD Frame Grabber Camera Grabber With MIPI C PHY Support

DOWDD Frame Grabber

AWDD Frame Grabber

MIPI C PHY Camera Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

AWDD DOWDD Frame Grabber Camera Grabber With MIPI C PHY Support

Product Details

DPS Characteristics:

AWDD, DOWDD, VPP2 Maximum Drive Capability 0.5A

MIPI Maximum Rate:

CH1/CW2/CW3/CW4

Sensor IO Level:

1.25 ~ 5V

External Interface ESD Protection:

Human Body Model (HEM) ≥ ±2000V

Buffer Capacity:

DDR4 8Gbit * 2

Kelvin Compensation:

AWDD, VPP2, DOWDD, DWDD Support Kelvin Compensation

Sensor Supply Voltage:

Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

PC Communication Interface:

100 Fiber Optic Interface * 2

Highlight:

DOWDD Frame Grabber

AWDD Frame Grabber

MIPI C PHY Camera Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

LC 4X20 Channels Optical Interface Frame Grabber CP41 with MIPI C PHY Support

Featutes:

1. 4-lane MIPI D-PHY Rx with embedded clock recovery
2. Matrix-configurable 4×4 power management IC (PMIC)
3. Six-decade current measurement capability (100pA - 1A)
4. 144-node continuity test grid (4×36 configuration)
5. Multiplexed analog measurement frontend (16 channels)
6. Dynamic voltage regulation monitoring (DVID/SVID)
7. Ultra-low-power state voltage profiling
8. Remote sense compensation with <1mΩ accuracy
9. Sensor power-on validation protocol

Schematic:

AWDD DOWDD Frame Grabber Camera Grabber With MIPI C PHY Support 0

Dimention:

AWDD DOWDD Frame Grabber Camera Grabber With MIPI C PHY Support 1

CP41 Sensor Supply Voltage Measurement Applications:

Sensor Power Supply	Measuring Voltage Range	Accuracy	Number of Test Channels
AVDD/DOVDD/DVDD/VPP2	0.5V-5V	±10mV	4X4
