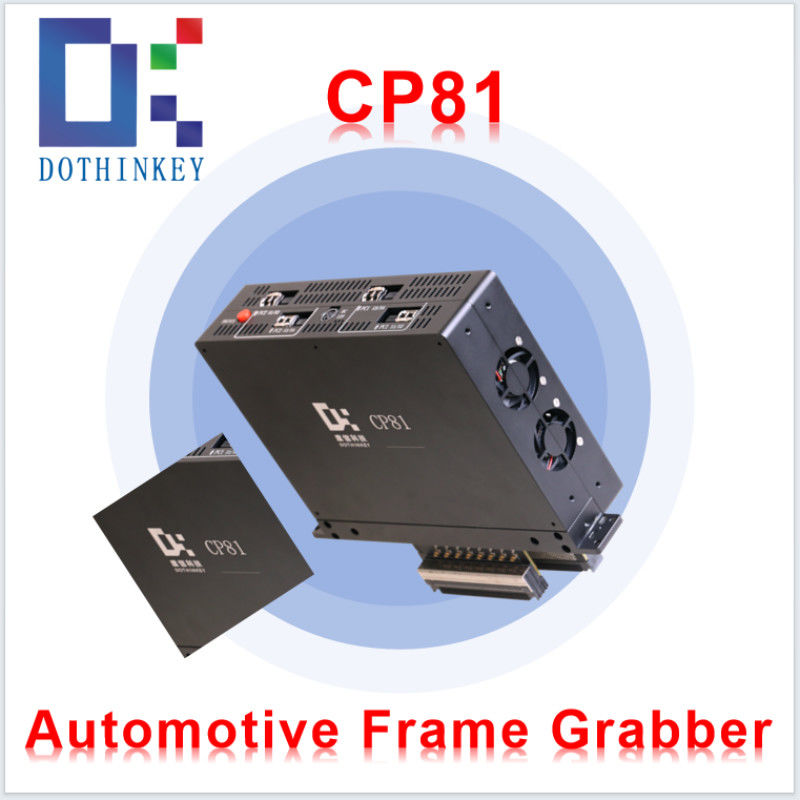

Dothinkey Camera Link Frame Grabber With Customizable Fiber Optic Interface

Dothinkey Camera Link Frame Grabber With Customizable Fiber Optic Interface

Camera Link Frame Grabber Dothinkey

Customizable Camera Link Frame Grabber

Fiber Optic camera grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

CE

Model Number:

CP81

Contact Us
Request A Quote
Dothinkey Camera Link Frame Grabber With Customizable Fiber Optic Interface
Product Details
PC Communication Interface:
10G Fiber Optic Interface * 4
DPS Characteristics:
DVDD 0.5-3.5V Adjustable, Maximum Drive Capability 0.8A
MIPI Data Channel:
MIPI D-PHY 1/2/4 Lane
Kelvin Compensation:
AVID, VPP2, DOVID, DVDD Support Kelvin Compensation
OS Characteristics:
Supports 8×39 OS Testing
Analog Measurement Input:
Measurement Range: -2 ~ 5V, Accuracy: ±10mV
Highlight:

Camera Link Frame Grabber Dothinkey

,

Customizable Camera Link Frame Grabber

,

Fiber Optic camera grabber

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Packaging Details
Carton Packaging
Delivery Time
5-8 Working Days
Supply Ability
Stock Available
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

Dothinkey CP81 Frame Grabber with Customizable Fiber Optic Interface



Featutes:

1. High-throughput image capture system (8×D-PHY lanes)
2. 48-channel intelligent power management solution
3. Six-decade current measurement capability
4. Comprehensive optical test platform (312 test nodes)
5. Flexible analog measurement interface
6. Real-time voltage monitoring for power rails
7. Low-power signal integrity verification
8. Kelvin connection implementation for precision power





Schematic:

Dothinkey Camera Link Frame Grabber With Customizable Fiber Optic Interface 0



Dimention:

Dothinkey Camera Link Frame Grabber With Customizable Fiber Optic Interface 1





CP81 Functional Applications:

DPS Power Supply Application
The CP81 supports six high-precision digital adjustable power supplies (DPS) per channel with
high-precision current detection and overcurrent protection.



Sensor Power Voltage Measurement Application
The CP81 provides 8X5 channel sensor power voltage measurements.



Analog Measurement Input Pin Application
The CP81 offers 8X6 channel sensor reference voltage measurements.



LC Leakage Current Measurement
The CP81 provides 8X20 channel LC leakage current measurements.
