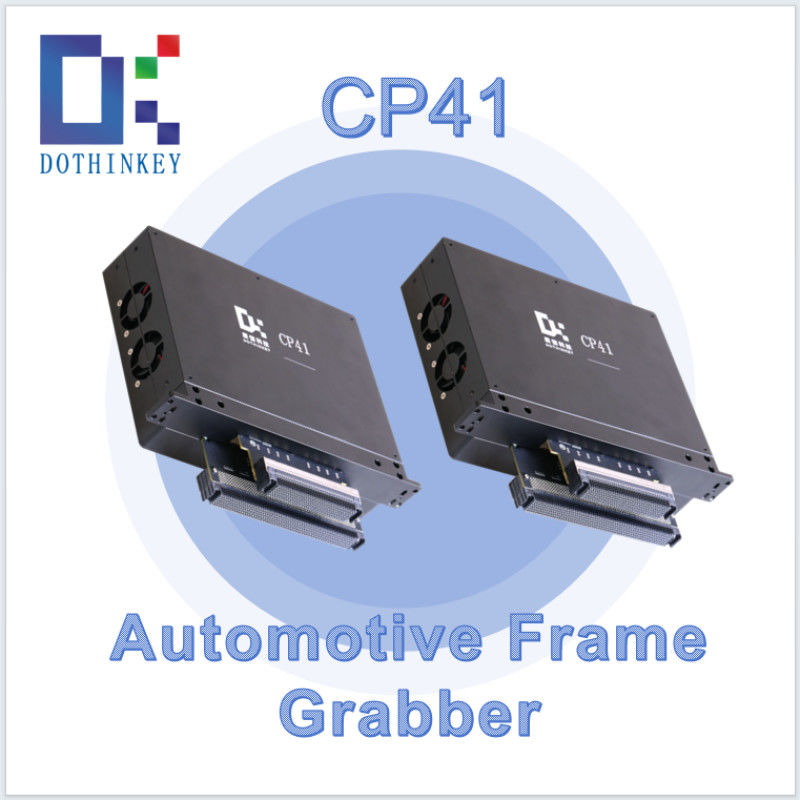

Name: Fiber Optic Camera Frame Grabber Dothinkey AWDD VPP2 MIPI Frame Grabber
Brand: Shenzhen Dothinkey Technology Co., Ltd.
SKU: CP41
Price: 3,100.00 USD
Availability: InStock

Home > products > Camera Frame Grabber >

Fiber Optic Camera Frame Grabber Dothinkey AWDD VPP2 MIPI Frame Grabber

Fiber Optic Camera Frame Grabber

Camera Frame Grabber Dothinkey

VPP2 MIPI Frame Grabber

Place of Origin:

Shenzhen, China

Brand Name:

Dothinkey

Certification:

Model Number:

CP41

Request A Quote

Fiber Optic Camera Frame Grabber Dothinkey AWDD VPP2 MIPI Frame Grabber

Product Details

Height Width Length:

59mm * 180.2mm * 250mm

DPS Characteristics:

Provides 4X4 Independent Power Supplies

MIPI Data Channel:

MIPI D-PHY 1/2/4 Lane

Analog Measurement Inputs:

Measurement Range: -2 ~ 5V, Accuracy: ±10mV

OS Characteristics:

Support 4X36 Channels OS Test

Sensor Clock:

6 ~ 99MHz ±0.01MHz

External Interface ESD Protection:

Machine Model (MM) ≥ ±100V

Kelvin Compensation:

AWDD, VPP2, DOWDD, DWDD Support Kelvin Compensation

Highlight:

Fiber Optic Camera Frame Grabber

Camera Frame Grabber Dothinkey

VPP2 MIPI Frame Grabber

Payment & Shipping Terms

Minimum Order Quantity

Price

USD1200-USD5000

Packaging Details

Carton Packaging

Delivery Time

5-8 Working Days

Payment Terms

T/T

Supply Ability

Stock Available

Related Products

86-755-6114-6178

Contact Now

Product Description

Dothinkey Fiber Optic Frame Grabber 100K-1M IC Rate External ESD Protection

Featutes:

1. Automotive-grade MIPI D-PHY interface
2. 4×4 matrix power source/sink unit
3. Sub-nanoamp current measurement capability
4. 144-node boundary scan test architecture
5. Floating analog measurement inputs
6. Power rail glitch detection (<10ns pulse)
7. LP state voltage compliance testing
8. Smart cable loss compensation algorithm
9. Sensor power-up signature analysis

Schematic:

Fiber Optic Camera Frame Grabber Dothinkey AWDD VPP2 MIPI Frame Grabber 0

Dimention:

Fiber Optic Camera Frame Grabber Dothinkey AWDD VPP2 MIPI Frame Grabber 1

CP41 OS (Open/Short) applications:

Test Voltage Setting Range	Test Voltage Resolution	Test Current Range	Test Current Resolution	Number of Test Channels	OS Test Resolution
0.5-2V	0.1V	0-10mA	0.1mA	4X36	0.1mV
