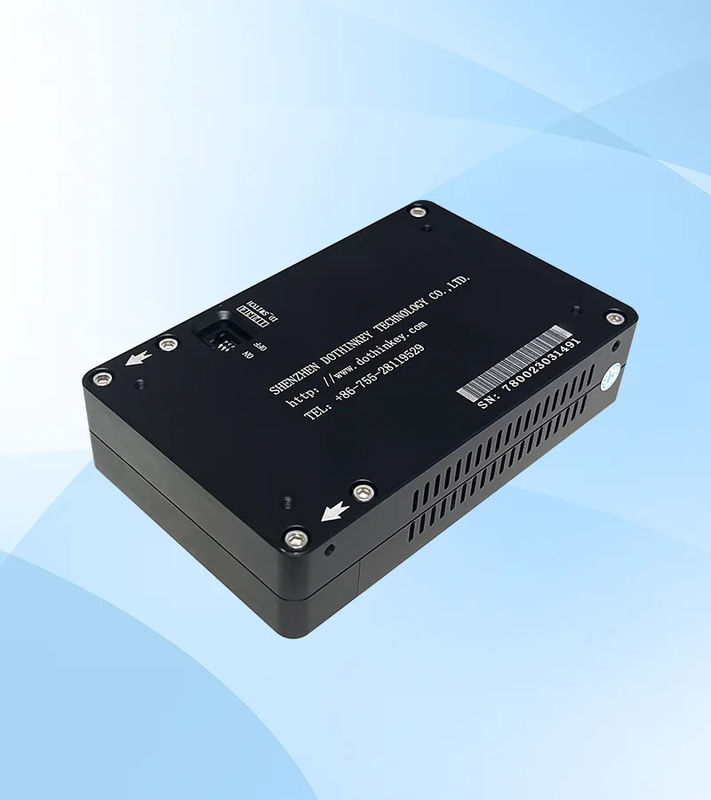

MIPI DPHY CSI/DVP Camera Frame Grabber Max 1.5Gbps Camera Link Grabber

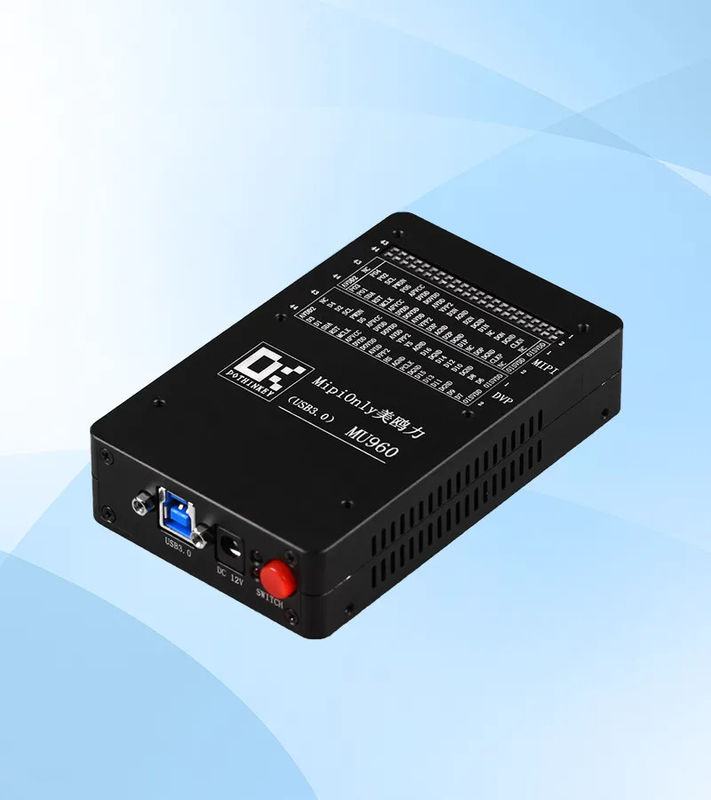

The MU960 series is a mobile phone camera module testboard with small size, higher compatibility and reliabilitysuitable for automatic equipment applications.MU960 seriesmodule interface design is simple,using interface reusedesign, one interface supports cameras with MlPl, or Dvp ,orDVS interface.in order to test the quality of the camera modulemore accurately,MU960 series products are combined with thecurrent detection technologyat the level ofprecisioninstruments.The minimum resolution can reach 1OnA, and thestandby current ofthe Sensor can be measured moreaccurately and conveniently.

Key Features
▪ High rate MIPl lane,and up to 4lanes supported,bandwidthcan be up to 1.5Gbps/lane.
▪ Parallel date transmission supported,and data bits up to16bits (Only Mu960 ,MU960Pro and Mu960Max supported)
▪ DVS module test supported, and it’s data bits supportedup to 16bits.(Only MU960,MU960Pro and MU960Maxsupported)
▪ Support HSPl modules.(Only MU960Max support)
▪ Small size,high-performance, suitable for automatic testapplication.
▪ High speed UsB3.0 port ,easy to use ,transmissionbandwidth can be up to 5Gbps.
▪ Dynamic/Standby current test standard can reach toprecise instrument.High accuracy Open/Short test,alsosuitable for package test application.
▪ 5 to 7 channels programmable power supply with highaccuracy,low noise;two channels provide the TOF modulespecially.(Only MU960 ,MU960Pro and Mu960Max support7 channels andTOF module)
▪ Provide power supply for ToF module and currentacquisition(OnlyMU960,MU960Pro andMU960Maxsupported)
▪ Camera modulecompatibilityis wide,supportingmost kind of modules in the market.
