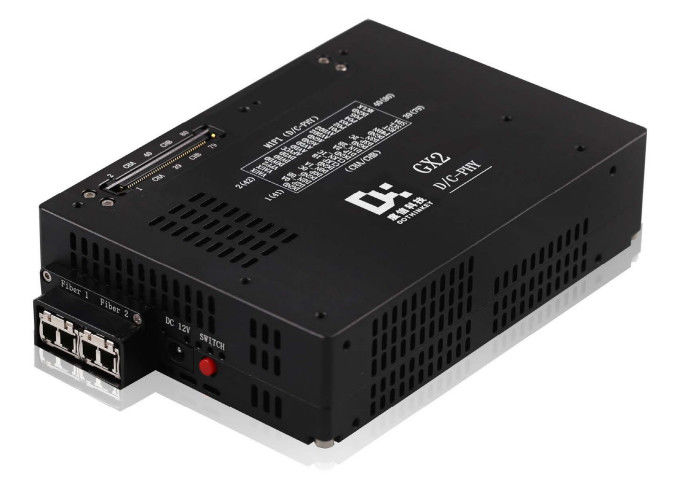

Do3think MIPI Frame Grabber 10G Fiber Optic Image Frame Grabber

Do3think MIPI Frame Grabber 10G Fiber Optic Image Frame Grabber

Do3think MIPI Frame Grabber

10G Fiber Image Frame Grabber

Do3think Image Frame Grabber

Place of Origin:

shenzhen China

Brand Name:

do3think

Model Number:

GX2

Contact Us
Request A Quote
Do3think MIPI Frame Grabber 10G Fiber Optic Image Frame Grabber
Product Details
Power Supply:
DC12V/3A
Sensor Interface:
MIPI D-PHY CSI MIPI C-PHY CSI
MIPI Rate:
CHA/CHB MIPI D-PHY 2.5Gbps/Lane MIPI C-PHY 1.9Gsps/Trio
PC Communication Connection:
10G Fiber Optic Interface* 2
Buffer Capacity:
DDR4_16Gbit
External Interface ESD Protection:
Human Body Model (HBM)≥±4000V Machine Model(MM)≥±200V
Highlight:

Do3think MIPI Frame Grabber

,

10G Fiber Image Frame Grabber

,

Do3think Image Frame Grabber

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD1200-USD5000
Payment Terms
T/T
Supply Ability
Negotiable
Related Products
Contact Us
86-755-6114-6178
Contact Now
Product Description

1.2 channel MIPI D/C-PHY image acquisition;

2.2*7 channel Sensor adjustable power supply;

3.Support mA,uA,nA current detection;

4.Support 2*29 circuits OS test;

5.Support2*29 circuits LC test;

6.Support setting product ID;

7.The external module interface is high-speed connectorinterface(module swivel-end connector modelFX18-80P-0.8SV);

8.Support LP voltage measurement;

9.Support Sensor GPIO voltage measurement.
